Blade and bore measurements of the contrabassoon reeds are in "Reed Measurements Part 2: Bassoon and Contrabassoon Reeds," Scrapes 8/1 (April 2001): 65-77. Authors Terry B. Ewell and Todd Goranson. Republished in the Dutch edition of Scrapes 8/2 (May 2001): 51-63.

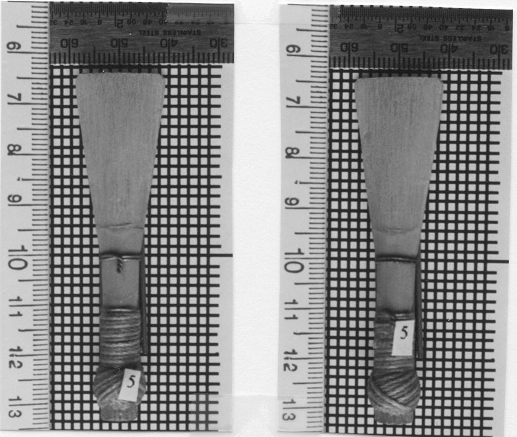

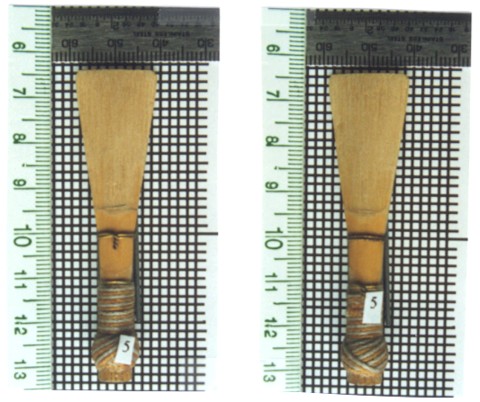

#5 Haus Wisse-contrabassoon reed.
B & W gif file | Color jpg file
This contrabassoon reed was 68mm in length. The blade was 31.5mm in length. Projected width at the tip was 19mm. Width at the collar was 10mm. The reed had a string wrap. Three brass wires, possible #23, were at app. 6mm, 21.5mm and 31.5mm.

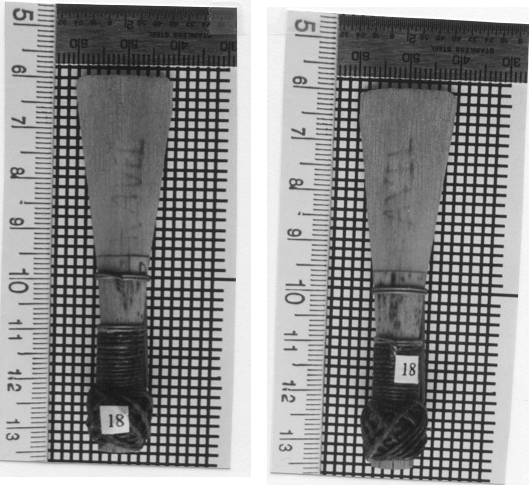

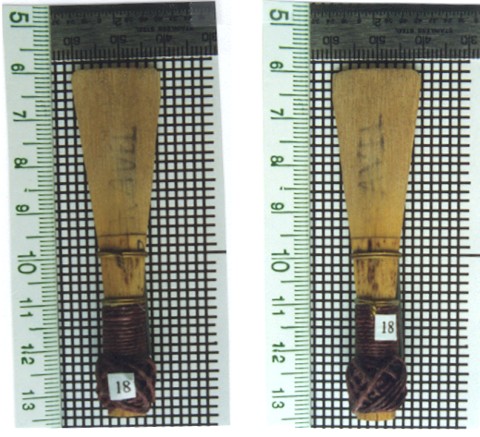

#18 Guus Drall, Europe-contrabassoon reed
B & W gif file | Color jpg file
This contrabassoon reed was 74mm in length. The blade was 36mm in length. The projected tip width was 20. Width at collar was 11mm. This reed had a string wrap. Three brass wires at 7mm, 24.5mm, and 29mm.
